LED Video Wall Solutions for Every Environment
From intimate boardrooms to massive outdoor facades — Samsung, LG & Planar LED displays deployed pan-India through VTL. 300+ projects, 3 OEM LED brands, nationwide deployment.
What Are LED Video Walls?
LED video walls are large-format display systems built from self-emitting LED modules that tile together into seamless, bezel-free surfaces. Unlike LCD video walls that use individual panels with visible seam lines, LED walls produce a continuous image at any size, making them the preferred choice for high-impact visual installations.
Key terminology matters when specifying LED video walls. Pixel pitch (the distance between LED pixels, measured in millimeters) determines resolution and optimal viewing distance. Finer pixel pitches like P1.2 deliver sharp images at close range, while P6 or P10 are suited for outdoor viewing from greater distances. Cabinet sizes, LED modules, controllers, and video processors are the core components of every installation.
LED technology continues to advance rapidly with innovations in COB (Chip-on-Board), MicroLED, and MiniLED pushing the boundaries of what is possible in terms of pixel density, contrast, and form factor. These advancements are making LED video walls viable in environments where they previously were not, from compact boardrooms to transparent retail storefronts.
P0.7-P10
Pixel Pitch Range
100K hrs
Rated Lifespan
Types of LED Video Walls
Five categories of LED display technology to match every installation environment, viewing distance, and application requirement.
Indoor LED Video Walls
Fine pixel pitch displays from P0.9 to P2.5, ideal for corporate lobbies, boardrooms, retail environments, and broadcast studios. Controlled lighting environments allow for maximum visual impact at close viewing distances.
P0.9 - P2.5 | 600-1,500 nits | Front-access service
Outdoor LED Video Walls
Weatherproof displays rated IP65 or higher with high brightness output of 5,000 to 8,000 nits. Designed for stadiums, building facades, transit hubs, and advertising installations that require sunlight readability.
P3 - P10 | 5,000-8,000 nits | IP65+
Curved LED Walls
Concave and convex configurations that create immersive visual experiences for retail showrooms, exhibition halls, corporate lobbies, and experience centers. Custom curvature to match any architectural requirement.
Custom radius | Concave/Convex | Modular design
Transparent LED Displays
See-through LED panels for glass storefronts, building facades, and museum installations. Display dynamic content while maintaining visibility through the panel, combining digital signage with architectural transparency.
60-80% transparency | P2.5 - P10 | Glass-mount
Fine-Pitch LED Displays
Ultra-high-resolution displays from P0.7 to P1.5 designed for control rooms, command centers, and broadcast environments. Replace LCD video walls in mission-critical environments where seamlessness and reliability are essential.
P0.7 - P1.5 | 24/7 rated | Redundant power
LED Video Wall Brands We Distribute
Three globally recognized OEM partners, each bringing distinct strengths to LED video wall technology.
Samsung LED
The Wall (MicroLED), IF Series (indoor fine pitch), OHN Series (outdoor high brightness)
MicroLED innovation, MagicINFO CMS, industry-leading R&D
View Full Portfolio
LG LED
LSAA/LSAB Series (ultra-fine pitch), LAxx Series (outdoor), GSCD/GSCA Series (curved)
webOS signage platform, wide product range, competitive pricing
View Full Portfolio
Planar

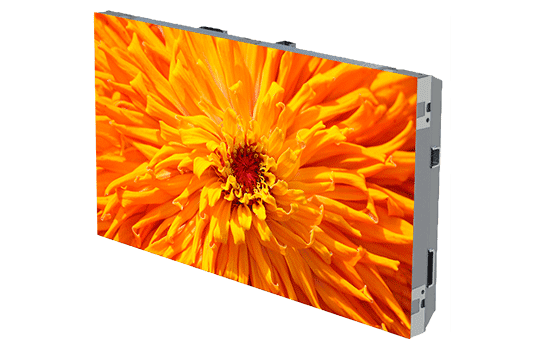

DirectLight LED Series, TVF Series (fine pitch), CarbonLight (carbon fiber, lightweight)
Mission-critical reliability, control room heritage, lightweight designs
View Full PortfolioLED Video Wall Applications
From corporate lobbies to outdoor advertising, LED video walls deliver high-impact visual communication across every environment.
Corporate Lobbies
Brand storytelling walls and visitor experience displays
Retail & Shopping Malls
Digital storefronts, immersive brand experiences
Hospitality
Hotel lobby feature walls, event backdrops, banquet displays
Houses of Worship
Sermon projection and immersive worship environments
Events & Entertainment
Stage backdrops, concert visuals, conference keynotes
Control Rooms
Mission-critical monitoring and NOC/SOC dashboards
Education & Auditoriums
Lecture halls and auditorium feature walls
Transportation Hubs
Airport FIDS, railway information, wayfinding
LED Video Wall Configuration Options
LED video walls support virtually any configuration from standard 2x2 and 3x3 grids to fully custom shapes and aspect ratios. The modular nature of LED cabinets means your wall can be 16:9, 21:9, or any custom proportion to fit your architectural space.
Choosing the right pixel pitch starts with your minimum viewing distance. A reliable rule of thumb: the viewing distance in meters roughly equals the pixel pitch in millimeters. For a boardroom where viewers sit 2 meters away, P1.5 to P2 is ideal. For a lobby where the nearest viewer is 3-4 meters out, P2.5 works well. Outdoor installations viewed from 10+ meters can use P6 or higher.
Structural requirements include weight-bearing capacity for mounting, adequate power provisioning, proper ventilation or climate control, and cable management infrastructure. VTL provides site survey assistance to assess all of these factors before deployment.
LED Video Wall Pricing in India
LED video wall pricing depends on several key factors: pixel pitch (finer pitch costs more per square foot), indoor versus outdoor IP rating, total display area, OEM brand, and installation complexity. Fine-pitch indoor LED walls are at the premium end of the spectrum, while standard-pitch outdoor displays offer a different cost structure.
VTL pricing typically includes LED panels, controllers, mounting structure, installation support, CMS licensing, and OEM warranty. Electrical work, structural civil work, and content creation are project-specific line items quoted separately.
Pricing is always project-specific. VTL offers competitive OEM pricing from Samsung, LG, and Planar with flexible commercial terms and project financing options for system integrator partners.
How We Deploy LED Video Walls
An eight-step deployment methodology that ensures every LED video wall project is delivered on time, on spec, and with full OEM support.
Consultation
Needs assessment and project scoping
Site Survey
Structural and electrical evaluation
Design
Configuration, pixel pitch, and sizing
Procurement
OEM product sourcing and quality check
Logistics
Pan-India delivery coordination
Installation
On-site support and commissioning
Training
Operator training and documentation
Support
After-sales warranty and maintenance
Project Spotlight
Deployed a 6m x 3m Samsung P1.5 fine-pitch LED video wall for a 5-star hotel lobby in Mumbai, replacing an outdated projection system. The installation included a custom video processor, Samsung MagicINFO CMS for content scheduling, and an anti-glare surface treatment for the ambient lobby lighting.
Result: the hotel reported a 40% increase in guest engagement with digital concierge content and a significant improvement in the lobby's visual identity, creating a premium first impression aligned with the brand's luxury positioning.
Frequently Asked Questions About LED Video Walls
Answers to the most common questions from system integrators and enterprise buyers evaluating LED video wall solutions.
LED video walls use self-emitting LED modules that tile together seamlessly with no visible bezels, while LCD video walls use individual LCD panels with thin bezels between them. LED walls offer higher brightness, better color uniformity, seamless appearance, and are available in much larger sizes. LCD video walls are more cost-effective for smaller configurations but show visible seam lines.
Pixel pitch depends on your minimum viewing distance. A common rule of thumb is that the minimum comfortable viewing distance in meters roughly equals the pixel pitch in millimeters. For example, a P2 display is ideal when viewers are at least 2 meters away. For close-up viewing in boardrooms, choose P1.2-P1.5. For lobbies, P1.5-P2.5. For outdoor displays viewed from a distance, P3-P10.
LED video wall pricing in India varies based on pixel pitch, display size, indoor or outdoor rating, and OEM brand. Fine-pitch indoor LED (P1.2-P1.5) typically costs more per square foot than standard indoor LED (P2-P2.5). Outdoor LED walls include weatherproofing costs. Contact VTL for a project-specific quote with competitive pricing from Samsung, LG, and Planar, along with flexible commercial terms.
